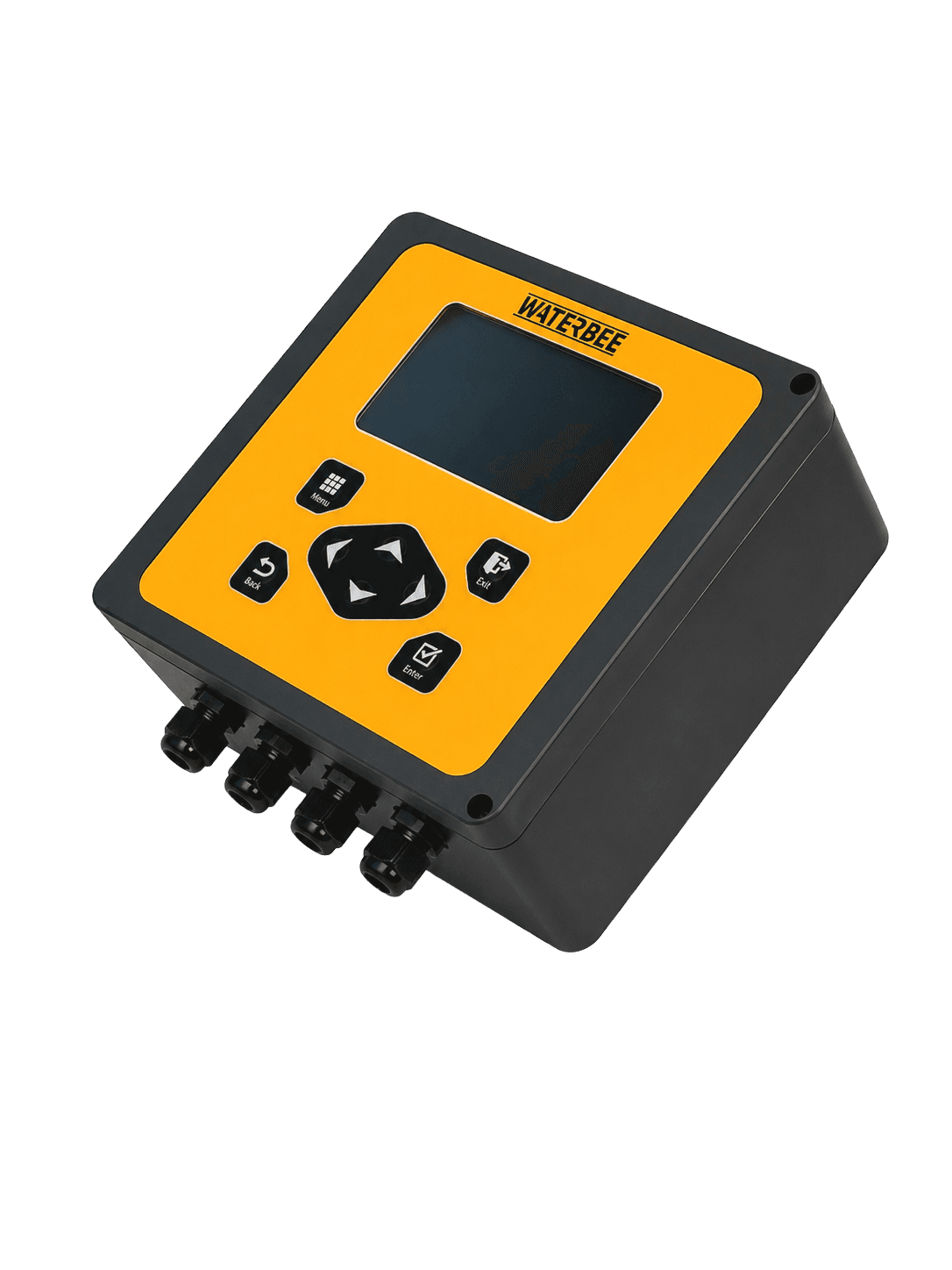

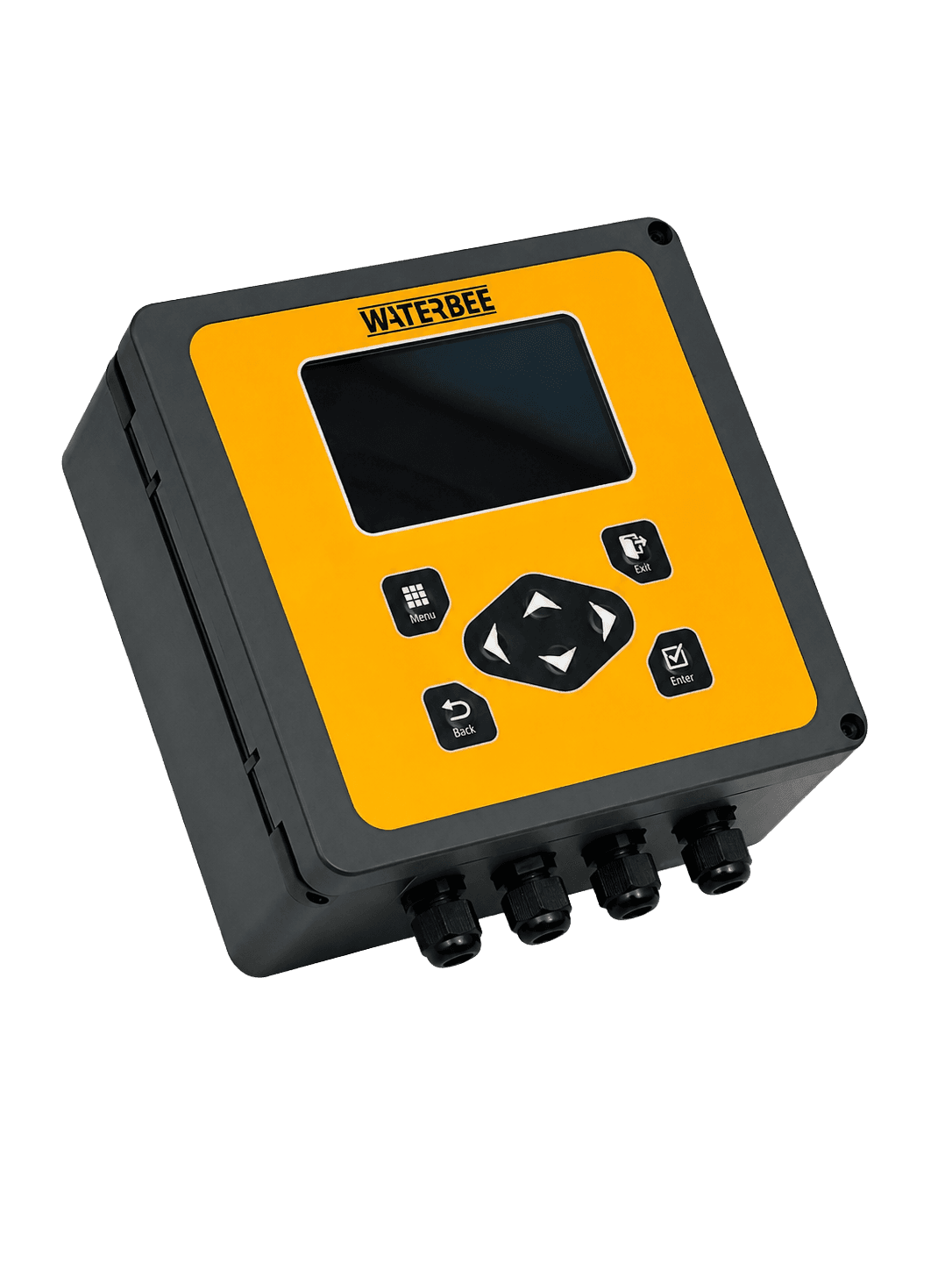

WBSC10Controller
Smart Controller
Integrated field controller for sensor display, calibration, output and communication
- Display
- 4.3-inch TFT LCD
- Analog Output
- 4–20 mA, 2CH
- Communication
- RS-232, RS-485 / optional Ethernet
- Relay Output
- 3CH
System configuration
One- or two-channel configurations. Sensor connections and output assignments follow the supplied specification.
Overview

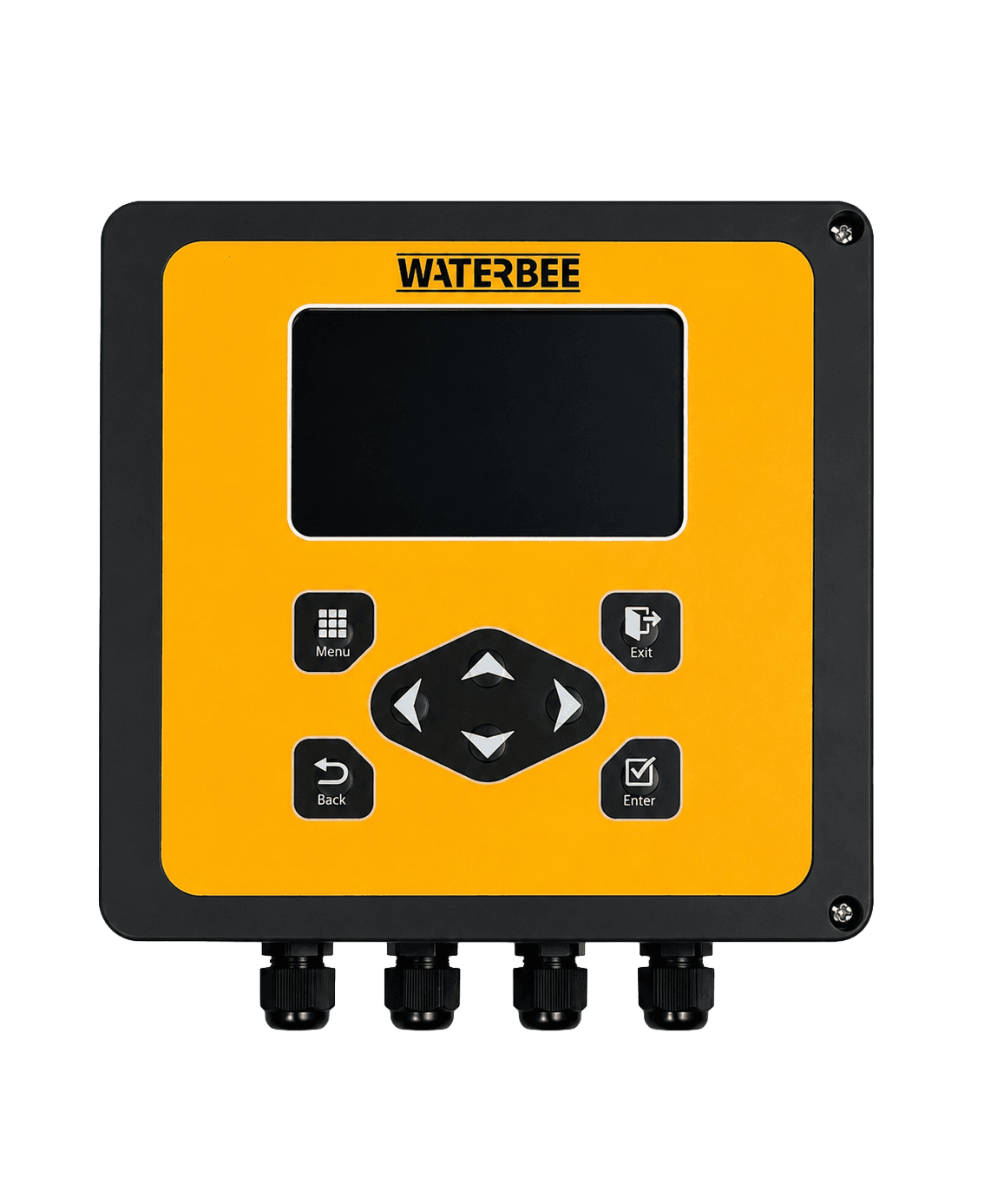

Smart Controller
- Integrated measurement display, calibration and alarms
- 4.3-inch TFT LCD and field keypad
- 4–20 mA and RS-485 plant-system integration
4.3-inch TFT LCD with field keypad
Sensor measurement display and field calibration
4–20 mA analog output
RS-232 / RS-485 communication
Modbus RTU integration; Ethernet depends on the supplied configuration
Alarm and control relay outputs
AC 110–240 V and DC 12 V power
Specifications
| Display | 4.3-inch TFT LCD |
|---|---|
| Analog Output | 4–20 mA, 2CH |
| Communication | RS-232, RS-485 / optional Ethernet |
| Relay Output | 3CH |
| Power Supply | AC 110–240 V, DC 12 V |
| Dimensions | See the applicable outline drawing and supplied configuration |
WBSC10
Dimensions & CAD
- Enclosure shown
- 190 × 180 mm
- Mounting centres
- 148 × 166 mm
- Mounting holes
- 4 × Ø4.2 mm
190 × 180 mm enclosure · 86.5 mm depth and side/bottom/isometric views: REF · Supplied-housing measurement check · Glands and button caps excluded
Written drawing dimensions · Supplied configuration and dimension check before fabrication or installation
